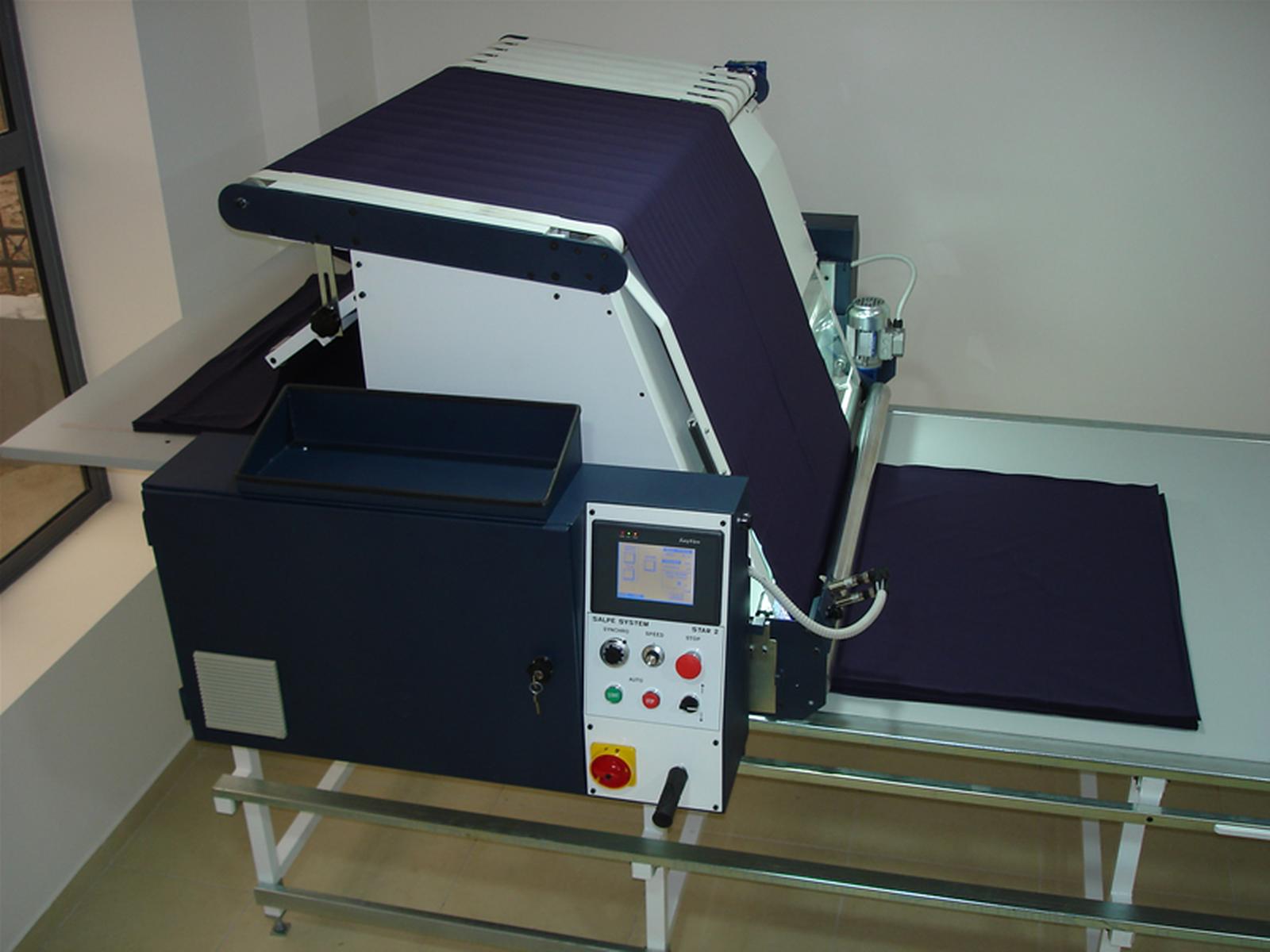

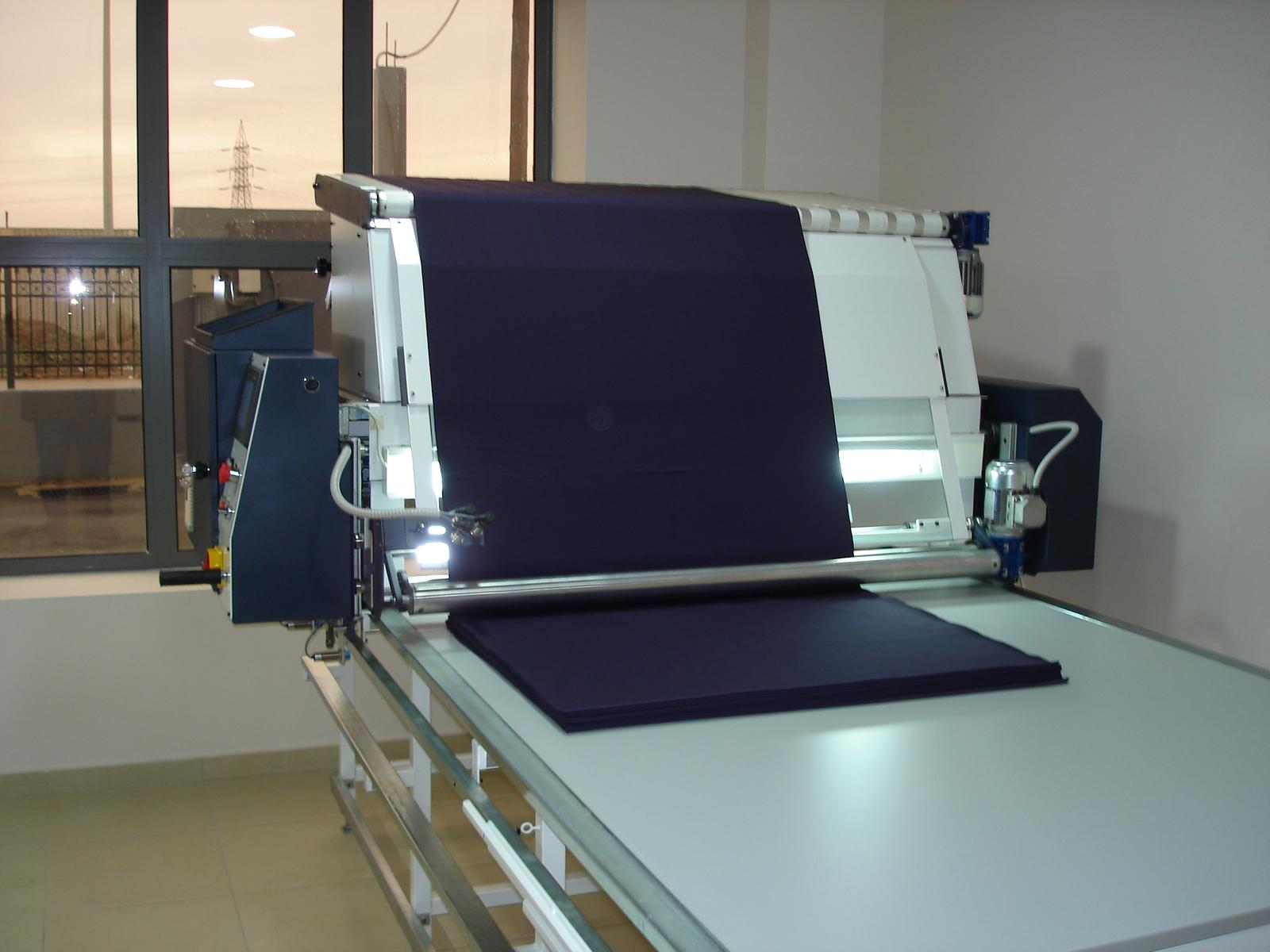

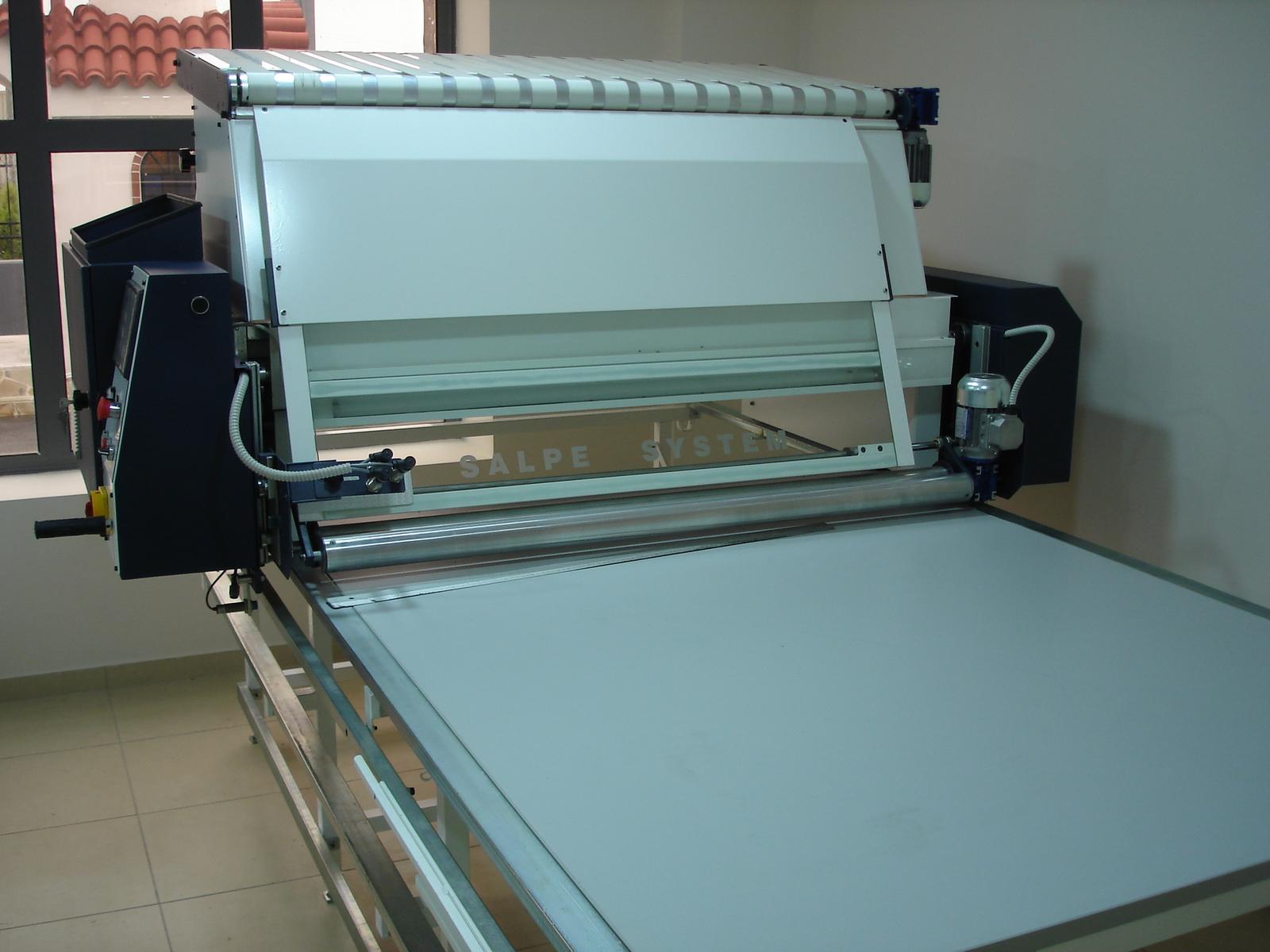

Multi-spreading Machine SALPE SYSTEM STAR 2
The multi-spreading machine STAR 2 is a new and distinctive product in textile industry. It spreads all closed fabrics without any guide. It has been made of credible material with advanced know how of manufacture. Having a very simple and easy way of management from a touch screen, it is a useful machine for every producer of ready-made clothes. Motion control is managed by programmed logical controllers (PLC) and revolution regulators (INVERTER) for smooth start and stop. Operator carrier for direct supervision of spreading.
IT IS MANUFACTURED IN ONE TYPE P 144O AS WELL AS IN SPECIAL-ORDER TYPE.
Technical Characteristics
Maximum height of layers 220mm
Possibility of micro-regulation, especially for spreading elastic fabrics
Operator carrier for direct supervision of spreading
Photo-electric cell, that checks when the machine runs out of fabric so that it may switch off its function
Dimensions
| Max. Height of Layers | 220 mm |
| Effective width | 1200 mm |
| Height | 1850 mm |
| Length | 1600 mm |
| Width | 2200 mm |
| Weight | 330 Kg |
| Voltage | 230V 50Hz |
| Power | 1.5 KW |
